Discretized Colorbar

This example demonstrates how to create a discretized colormap for categorical data, such as regions or clusters in a 2D grid. The colormap is created based on the maximum and minimum values of the data, and the colorbar is displayed above the plot.

We start by importing the necessary libraries and defining the configuration for the plot.

from pathlib import Path

import numpy as np

import beautiplot.plot as bp
from beautiplot import config

root = Path(__file__).parent.parent
config.output_path = root / 'docs/example_plots'

Next, we define the data for the plot. In this example, we create a grid of points and assign each point to a region based on its proximity to predefined attractors. The regions are represented by integers, which will be used to create a discretized colormap.

x = np.linspace(-2.1, 2.1, 1000)
y = np.linspace(-2.1, 2.1, 1000)
X, Y = np.meshgrid(x, y)
attractors = np.array([[1, 1], [-1, -1], [1, -1]])
marker_x, marker_y = attractors[:, 0], attractors[:, 1]
distances = np.stack([np.sqrt((X - px) ** 2 + (Y - py) ** 2) for px, py in attractors])
regions = np.argmin(distances, axis=0)

To visualize the regions, we use the discretize_colormap function. This function is designed for arrays of integers, such as region or category indices. It automatically creates a colormap with a distinct color for each integer value in the data. The number of colors is determined by the difference between the minimum and maximum values in the array. The colorbar ticks are placed in the center of each color segment, and the tick labels correspond to the integer values present in the data.

cmap, vmin, vmax, ticks = bp.discretize_colormap(regions, 'plasma')

We also define the extent of the data for the imshow plot using the extent function.

data_dict = {'x': x, 'y': y}
ext = bp.extent(data_dict)

Then, we create a new figure and axis using the newfig function. At first, we need to estimate the margins, but we can adjust them later if needed. We plot the regions using the imshow function, which displays the regions with the discretized colormap.

fig, ax = bp.newfig(left=42, bottom=28, top=46)
im = bp.imshow(ax, regions, extent=ext, cmap=cmap, vmin=vmin, vmax=vmax)

We also add markers for the attractors using the markers function.

bp.markers(ax, marker_x, marker_y, label='Attractors')

We set the x and y labels.

ax.set_xlabel('x')
ax.set_ylabel('y')

Here, we create a colorbar above the plot using the cbar_above function. The colorbar is labeled with "Region Index", and the ticks are set to the unique values of the regions.

cbar, cax = bp.cbar_above(fig, ax, im, ticks=ticks)
cbar.set_label('Region Index')

Finally, we add a legend to the plot using the legend function, and we save the figure using the save_figure function.

bp.legend(ax)

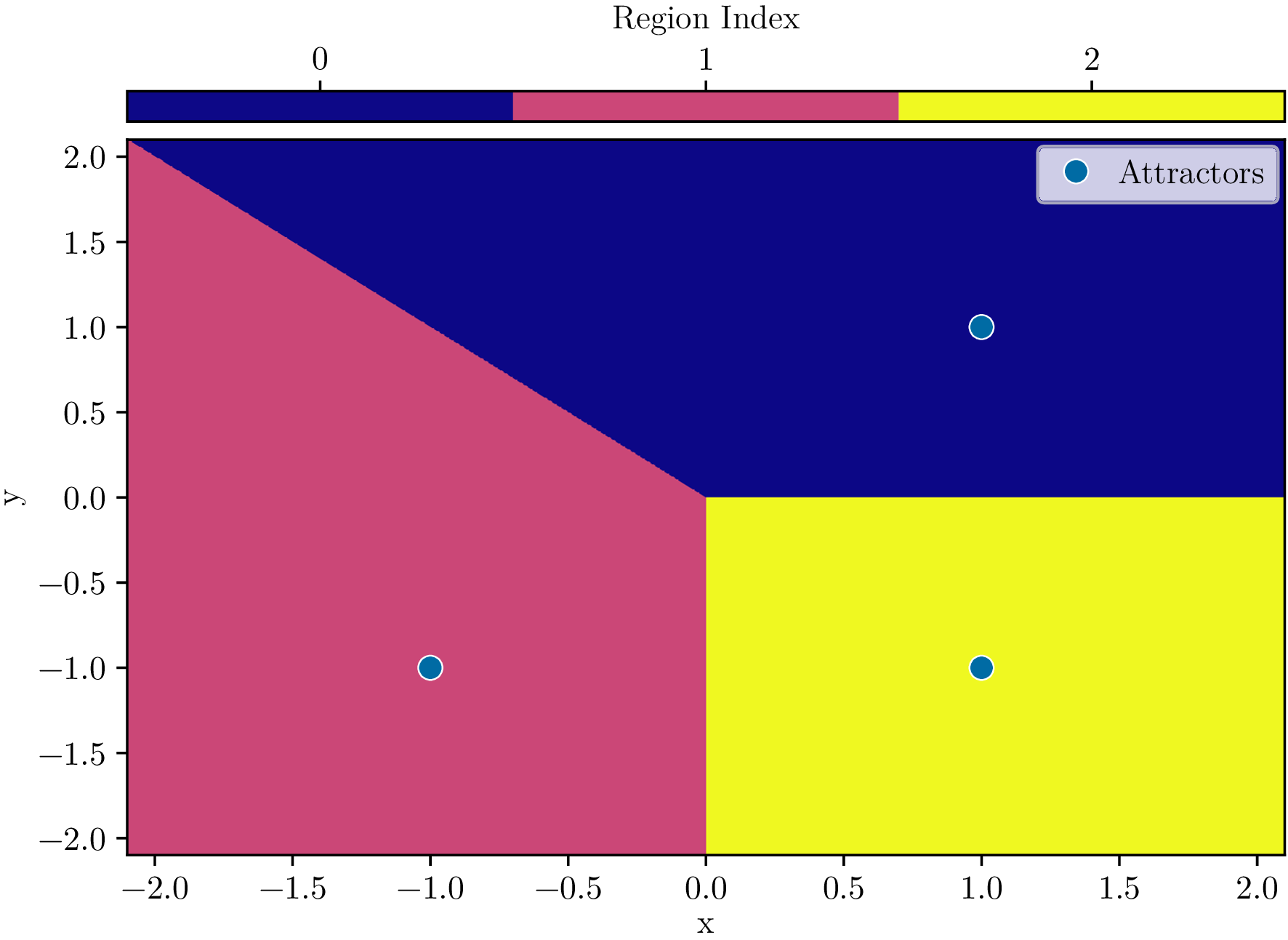

bp.save_figure(fig, 'voronoi_attractors.png')
