Shared Colorbar#

This example demonstrates how to create a grid of subplots with a shared colorbar using the beautiplot library. The subplots display the probability densities of a 2D quantum harmonic oscillator.

We start by importing necessary libraries and setting up the configuration for the plots.

from pathlib import Path

import numpy as np
from scipy.special import factorial, hermite

import beautiplot.plot as bp
from beautiplot import config

root = Path(__file__).parent.parent
config.output_path = root / 'docs/example_plots'
config.fontsize = 11

Next, we define the parameters for the 2D grid of subplots and the quantum states we want to visualize.

nx, ny = 100, 100
x = np.linspace(-4, 4, nx)
y = np.linspace(-4, 4, ny)
X, Y = np.meshgrid(x, y)
states = [(0, 0), (1, 0), (0, 1), (1, 1)]

To ensuure that all subplots have the same extent, we calculate the extent of the data using the extent function.

data_dict = {'x': x, 'y': y}
ext = bp.extent(data_dict)

The psi_2d function computes the normalized wavefunction of the 2D quantum harmonic oscillator for given quantum numbers nx and ny. It uses the Hermite polynomials and the Gaussian function.

def psi_2d(nx, ny, X, Y):
    Hx = hermite(nx)(X)
    Hy = hermite(ny)(Y)
    norm = 1.0 / np.sqrt(np.pi * 2 ** (nx + ny) * factorial(nx) * factorial(ny))
    return norm * Hx * Hy * np.exp(-0.5 * (X**2 + Y**2))

To start plotting, we create a new figure with a grid of subplots. In the beginning, you need to guess the margins and spacing, but you can adjust them later if needed.

fig, axes = bp.newfig(
    nrows=2, ncols=2, left=38, bottom=34, top=38, right=63, wspace=18, hspace=25
)

We want to label each subplot with a subfigure label. The label positions list defines the positions of the labels in each subplot.

label_positions = [
    ('right', 0.0, -22, 'bottom', 1.0, 3),
    ('right', 0.0, 0, 'bottom', 1.0, 3),
    ('right', 0.0, -22, 'bottom', 1.0, 3),
    ('right', 0.0, 0, 'bottom', 1.0, 3),
]

We then iterate over the quantum states, compute the wavefunction, and plot the probability density in each subplot. The imshow function is used to display the data as an image. The bounding box in data coordinates that the image will fill is controlled by the extent parameter. Thus, we can use the extent calculated earlier to ensure all subplots have the same extent. The subfig_label function adds the subfigure label to each subplot. The titles of the subplots are set to indicate the quantum numbers. You can use LaTeX formatting for the titles and labels. We store the images in a list to later set the same color limits for all subplots.

ims = []
for i, (n_x, n_y) in enumerate(states):
    psi = psi_2d(n_x, n_y, X, Y)
    prob_density = np.abs(psi) ** 2
    ax = axes.flat[i]
    im = bp.imshow(ax, prob_density, extent=ext)
    bp.subfig_label(ax, i, *label_positions[i])
    ax.set_title(f'$n_x={n_x}, n_y={n_y}$', fontsize=11)
    ims.append(im)

After plotting, we set the x and y labels for the subplots. To reduce clutter, we can remove the x-tick labels for the top subplots and the y-tick labels for the right subplots.

for i in range(2):
    axes[0, i].set_xticklabels([])
    axes[i, 1].set_yticklabels([])
    axes[i, 0].set_ylabel('$y$ / a.u.')
    axes[1, i].set_xlabel('$x$ / a.u.')

We calculate the maximum value of the probability densities across all subplots to set a common color limit for the colorbar. This ensures that the color mapping is consistent across all subplots. If you already have the data before plotting (in our case, prob_density before the loop), you can directly use the maximum and minimum values of the data to set the color limitsin the imshow function via the vmin and vmax parameters.

vmax = max(im.get_array().max() for im in ims)
for im in ims:
    im.set_clim(0, vmax)

Finally, we create a colorbar beside the grid of subplots using the cbar_beside function. By storing the returned colorbar and axis in two variables, we can set a label for the colorbar.

cbar, cax = bp.cbar_beside(fig, axes, ims[0], dx=0.02)
cbar.set_label(r'Probability Density $|\psi(x, y)|^2$')

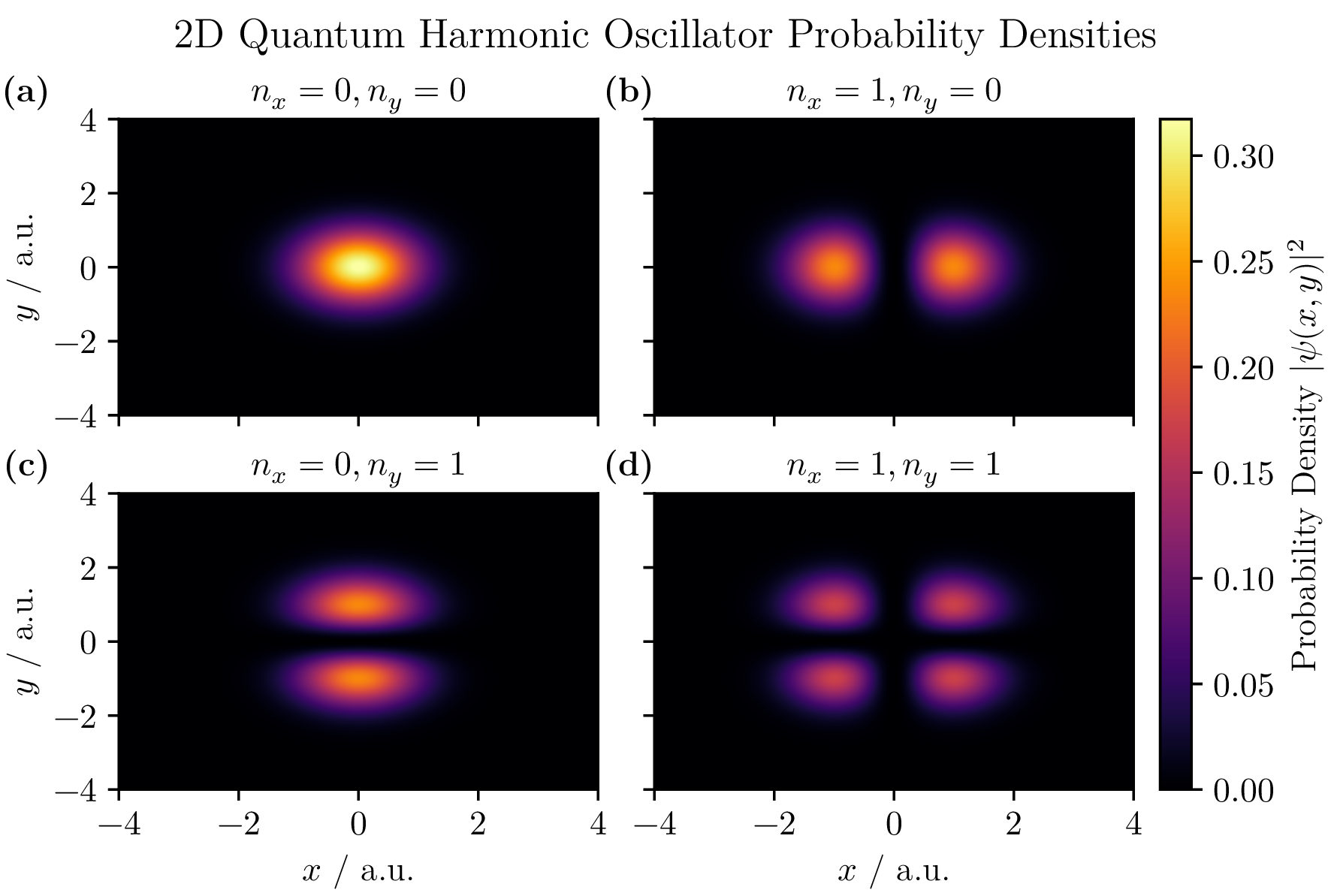

We add a title to the figure and store it in a file. Here, we use png for visualization reasons, but you should use pdf or svg for publication-quality figures. In case of really large figures, memory wise, you can still use png to save memory. The save_figure function saves the figure in the directory specified in the config.output_path. The filename is specified as the second argument.

fig.suptitle('2D Quantum Harmonic Oscillator Probability Densities')
bp.save_figure(fig, '2d_quantum_harmonic_oscillator.png')
